Product introduction:

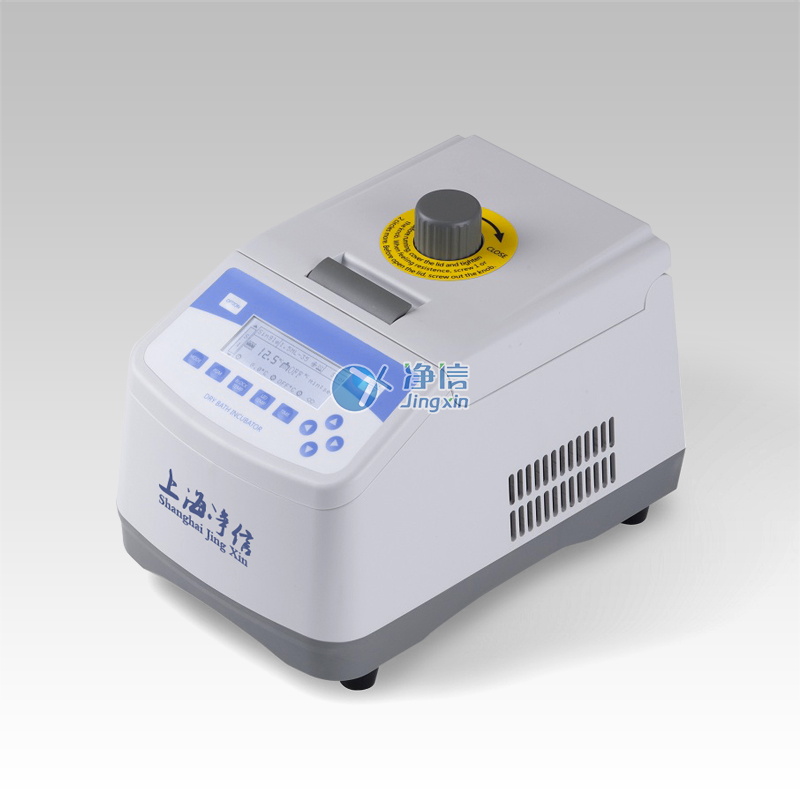

RH-10 hot-lid metal bath is a sample constant temperature incubation equipment designed based on semiconductor heating and cooling technology and PID automatic temperature control technology. Flexible timing, constant temperature function and unique multi-point operation mode effectively improve laboratory work efficiency. It is an ideal equipment for various sample incubation, catalysis and preservation reactions.
Features of hot-lid metal bath products:
1. Simple and easy-to-use man-machine operation interface, real-time display of all operating information and setting information, convenient for users to observe the operating status of the equipment;
2. High temperature control accuracy;
3. Two kinds of precise timing functions can be selected to achieve a larger 99 hours and 59 minutes or 99 minutes and 59 seconds;
4. A variety of modules for users to choose, and can also be customized according to customer requirements;
5. The temperature of the hot lid is controllable;
6. Support multi-point operation function, and the number of multi-point cycles can be configured;
7. Support automatic preheating function;
8. Support automatic recovery function after power failure;
9. Support the automatic operation function after booting;
10. Support 4℃ storage at the end of operation;
11. Temperature calibration function;
12. Built-in software and hardware dual over-temperature protection device, the use is more reliable;
13. Support module classification custom calibration function.
Product parameters of hot-lid metal bath:
Main parameters | Parameter range | |
model | RH-10 | |
Module specifications | EH series module | EHC series module |
Temperature setting range | 0℃~100℃ | -10℃~100℃ |
Temperature control range | Room temperature+5℃~100℃ | below room temperature |
time setting | 1sec~99h59min/∞ |
|
Temperature control accuracy (at 37℃) | ≤±0.3℃ | |
Display accuracy | 0.1℃ | |
Temperature uniformity (at 37℃) | ≤±0.3℃ | |
Heating time | ≤12 minutes (25°C to 100°C) | |
Cooling time 1 | -- | ≤12 minutes (100°C to 25°C) |
Cooling time 2 | -- | ≤25 minutes (room temperature drops to 25℃ below room temperature) |
Heating lid temperature setting range | OFF~+10℃ | |
Thermal lid temperature control accuracy | ≤±0.5℃ | |
Heating time of hot lid | ≤10 minutes (25°C to 100°C) | |
Store at 4℃ after running | -- | support |
Multi-point operation | Support (larger 5 points) | |
Multi-point loop operation | Support (large number of cycles 99 times) | |
Automatic preheating | support | |
Automatically run on startup | support | |
Automatic recovery after power failure | support | |
Sample capacity | See product accessories for details | |
input power | 150W | |
Voltage | AC220V/50-60HZ | |
Fuse | 250V 3A Ф5×20 | |
Dimensions | 300×200×210mm | |
weight | 4.0 Kg | 4.7kg |
Hot cover type metal bath product accessories:
Module model | Sample capacity | Temperature control range | Remarks |
EHC-01 | 35 x 2.0mL Centrifuge tube | RT-25℃~100℃ | Cooling, heating |
EHC-02 | 35 x 1.5mL Centrifuge tube | RT-25℃~100℃ | Cooling, heating |
EHC-03 | 54 x 0.5mL Centrifuge tube | RT-25℃~100℃ | Cooling, heating |
EHC-04 | 96 x 0.2mL Standard board | RT-25℃~100℃ | Cooling, heating |
EHC-05 | 96 x 0.2mL Microplate | RT-25℃~100℃ | Cooling, heating |
EH-06 | 35 x 2.0mL Centrifuge tube | RT+5℃~100℃ | Heating type |
EH-07 | 35 x 1.5mL Centrifuge tube | RT+5℃~100℃ | Heating type |
EH-08 | 54 x 0.5mL Centrifuge tube | RT+5℃~100℃ | Heating type |
EH-09 | 96 x 0.2mL Standard board | RT+5℃~100℃ | Heating type |
EH-10 | 96 x 0.2mL Microplate | RT+5℃~100℃ | Heating type |
Custom module | Customer Provided |
|
