Model：JX100-4
Brand：Jingxin
Specifications ：Set
Introduction：JX100-4 It can be widely used in the constant temperature incubation process of various biochemical samples such as sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, and serum coagulation.
Product Description:

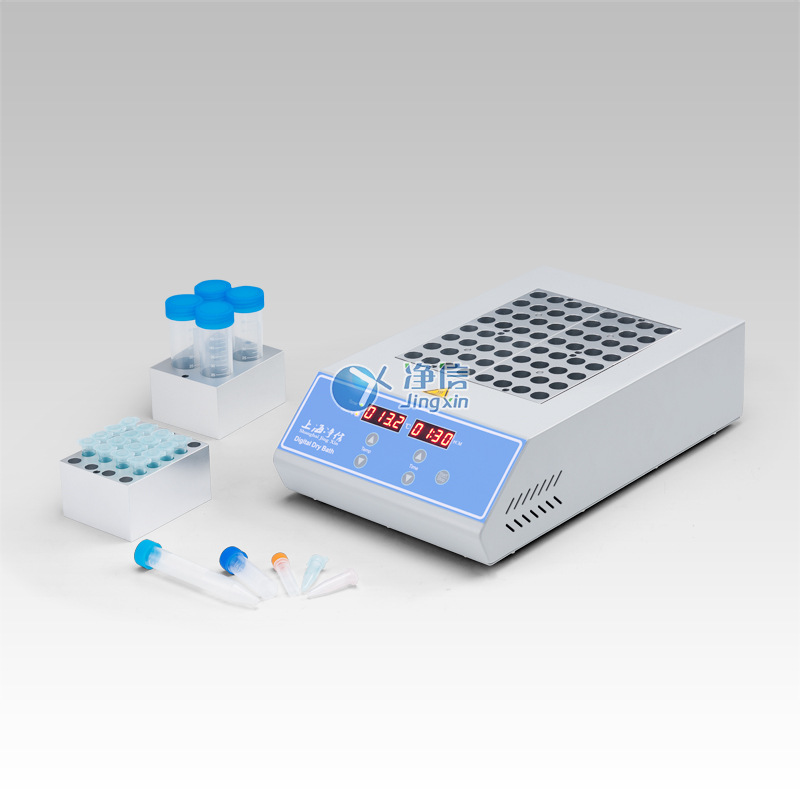

The JX100-4 high-temperature dry thermostat is controlled by a microcomputer and uses high-purity aluminum as a heat-conducting medium to replace the traditional water bath device. It has the characteristics of convenient use, large temperature control range and high precision. It can be widely used in the constant temperature incubation process of various biochemical samples such as sample preservation and reaction, DNA amplification and electrophoresis pre-denaturation, and serum coagulation.
Features:
◆Real-time display temperature value display, countdown display;
◆Automatic fault detection and alarm function;
◆With temperature deviation calibration function;
◆Convenient module replacement, easy to clean and disinfect;
◆Built-in over-temperature protection device;
Performance:
Main parameters | Parameter range |
Temperature control range | Room temperature +5℃~130℃ |
Temperature control accuracy | ±0.5℃(@40℃) |
Temperature uniformity | ±0.5℃ |
Display accuracy | 0.1℃ |
voltage | AC 220V |
Dimensions | 360*220*100 mm |
Heating time | ≤20min (25°C to 130°C) |
Temperature control accuracy | ±1℃(@120℃) |
Timing range | 1-99h59min/∞ |
Number of modules | 4 |
power | 600W |
weight | 8.0KG |
Optional modules:
Model | Test tube diameter | Test tube number |
MD01 | 6mm（47mm）Hole depth | 48 |
MD02 | 7mm（47mm）Hole depth | 48 |
MD03 | 10mm（47mm）Hole depth | 24 |
MD04 | 12mm（47mm）Hole depth | 24 |
MD05 | 13mm（47mm）Hole depth | 24 |
MD06 | 15mm（47mm）Hole depth | 16 |
MD07 | 16mm（47mm）Hole depth | 16 |
MD08 | 19mm（47mm）Hole depth | 12 |
MD09 | 20mm（47mm）Hole depth | 12 |
MD10 | 26mm（47mm）Hole depth | 8 |
MD11 | 28mm（47mm）Hole depth | 4 |
MD12 | 40mm（47mm）Hole depth | 3 |
MD13 | 0.2ml (Centrifuge tube) | 48 |
MD14 | 0.5ml (Centrifuge tube) | 48 |
MD15 | 1.5ml (Centrifuge tube) | 24 |
MD16 | 2.0ml (Centrifuge tube) | 24 |
MD17 | 0.2ml (Standard board) | 96 |
Custom module | Sample tube specifications provided by the customer | —— |
