Product Description:
Introduction of flapping homogenizer:

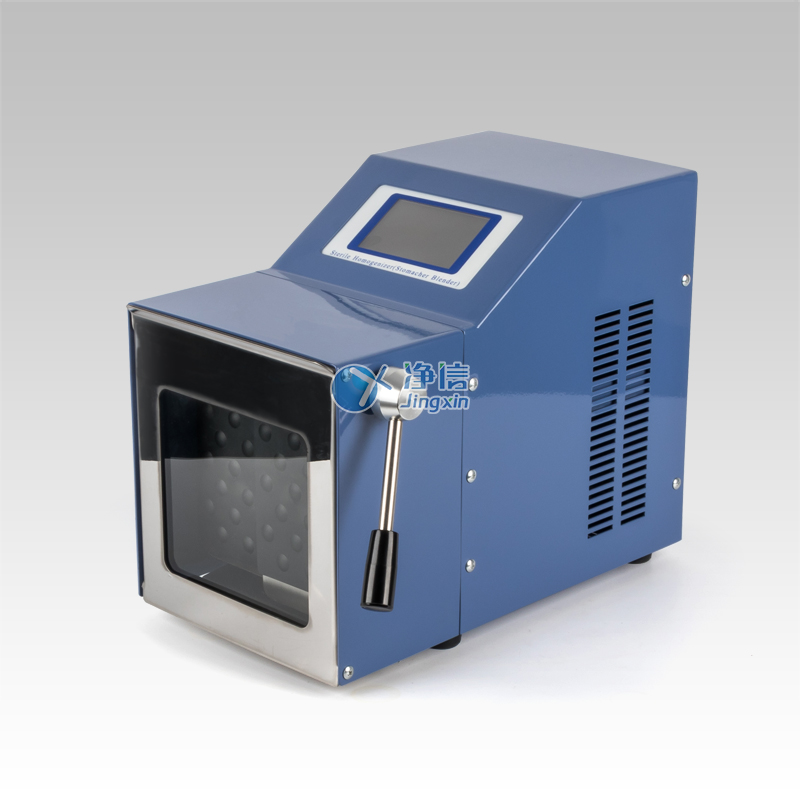

The XY-05 series homogenizer is used to homogenize different substances to obtain a representative sample of the substance. The device is simple and durable. You only need to add the sample and diluent to the sterile filter sample bag, then put the sample bag into the homogenizer, and close the door to start and complete the sample processing. The device can effectively separate uniform samples of microorganisms contained in and on the solid sample, ensuring that all samples mixed in the sterile bag are sufficiently representative.
Features:
XY-05 (JX-05) is widely used in the homogenization treatment of animal tissues, biological samples, food, medicine, cosmetics, such as: meat, fish, vegetables, fruits, biscuits, tobacco... dilution and mixing, etc., especially suitable For the preparation of microbiological testing samples, the samples are free of pollution, damage, temperature, and sterilization.
XY-05 (JX-05) makes the process of extracting bacteria from solid samples very simple, just add the sample and diluent to the sterile filter sample bag, and then put the sample bag into the homogenizer , Close the door to start and complete the sample processing.
The XY-05 (JX-05) system effectively separates the uniform sample of microorganisms contained in and on the solid sample, ensuring that all samples mixed in the sterile bag are sufficiently representative.
The XY-05 (JX-05) system reduces the sample processing and preparation time, usually 30-60 seconds processing time is sufficient. The processed sample solution can be directly sampled and analyzed without the risk of sample changes and cross-contamination.
The XY-05 (JX-05) system provides a variety of standard modes, covering almost all areas of analysis and research.
Product advantages:
1. Low noise, easy operation, large-screen LCD display, can store ten groups of working procedures;
2. All steel body materials of the machine body are stainless steel system;
3. In order to achieve a greater homogenization effect for samples with different processing volumes, a clap board adjustment device is specially set (the clap can adjust the distance between the front and rear);
4. Adjustable homogenization time;
5. Fixed or variable homogenization speed;
6. Progressive homogenization, excellent cell protection;
7. Sterile disposable filter bag to ensure hygiene and safety;
8. Fully open door, easy to clean;
9. The toughened glass transparent window is easy to observe, and the removable window, and the adjustable flapper.
10. There is no contact between the sample and the homogenizer, and system cleaning is not required;
11. Liquid tank to prevent leakage of the sample bag; the homogenization is soft, the sample is non-polluting, non-damaging, non-heating, does not require sterilization, and does not need to wash the utensils;
12. For the safety of the operator, an automatic stop Hall switch device is designed to prevent fingers from being pinched by mistakes in operation.
technical parameter:
Main parameters | Parameter range |
Effective volume: | 3～400ml |
Timing range: | 0.1-99min59s or continuous |
Slap speed: | 3～12 times/sec |
Slap spacing: | 0～40mm adjustable |
Number of programs that can be stored: | 8 groups of multi-segment programs |
Power: | 300W |
Sterile homogeneous bag: | 30×425px |
Number of homogeneous bags: | 100 |
Sample rack partition: | 5 sections (optional) |
Sample rack size: | 28×17×450px |
Use environment temperature: | 0~40℃ |
Power requirements: | 220V/50Hz |
Weight | 22Kg |
Dimensions: | 380×220×330mm |
Adjustable range of clapboard distance: | 0-50MM |
With pause function and stop anti-pinch function | yes |
Can be equipped with heating and heating function: | room temperature -80 ℃, can be set arbitrarily, with a tapping box temperature display; |
Can be equipped with automatic sterilization function (slap the disinfection lamp in the box to pre-sterilize the working cavity (single disinfection cycle 5min, disinfection wavelength 253.7min; prevent cross-contamination) | |
